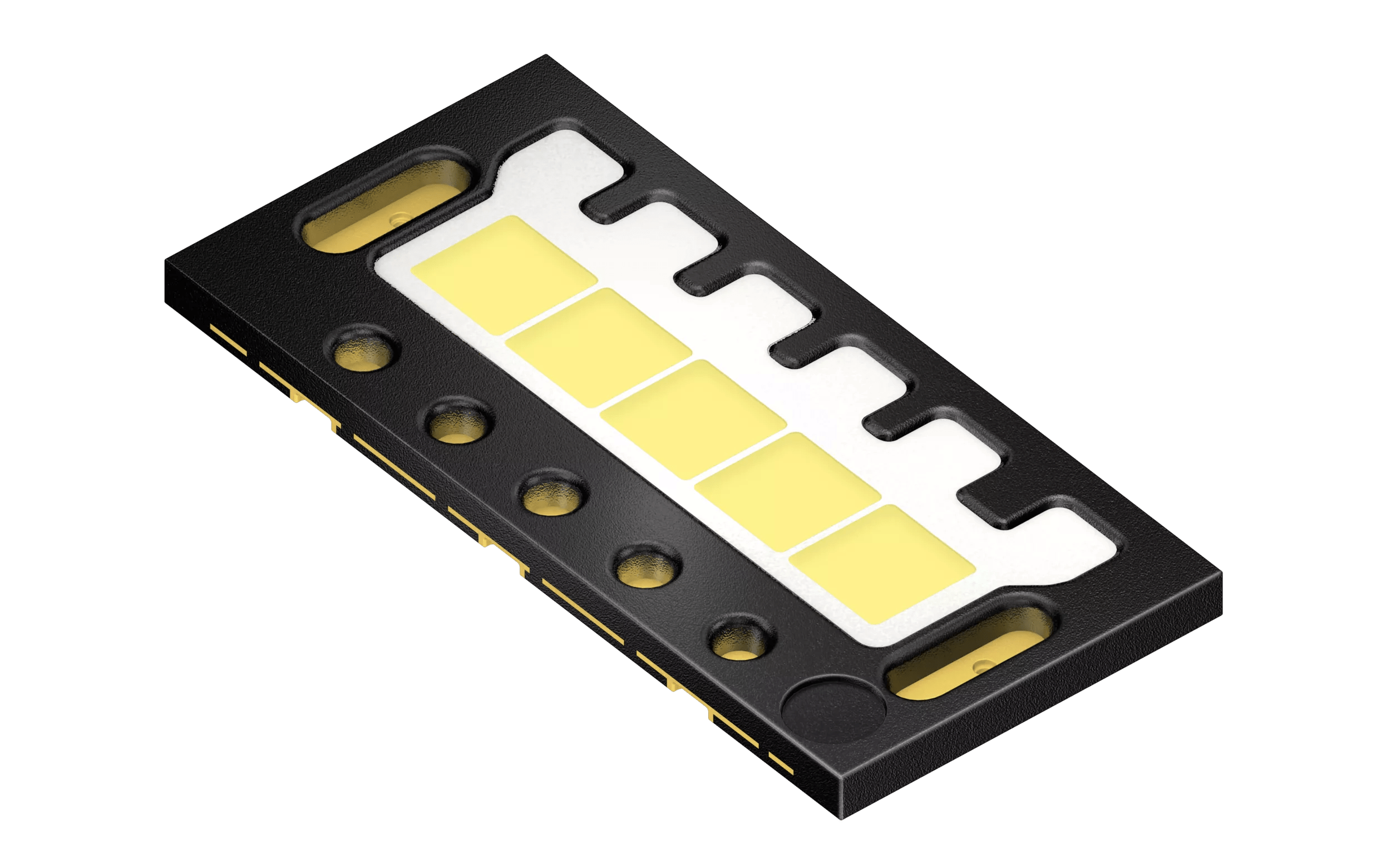

OSRAM OSLON® Black Flat S, KW HLL531.TE

OSRAM OSLON® Black Flat S, KW HLL531.TE
×

Description

OSLON Black Flat S is able to meet a wide range of requirements. The SMT device is very stable, durable and can be used with standard processes. A new solder pad layout allows for high reliability and improved thermal management. The compact chips not only deliver high light output, they are also individually addressable with an ensured chip-to-chip contrast which makes this LED an ideal solution for Adaptive Driving Beam (ADB).
Datasheet
KW HLL531.TE
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
15.0 W
Ultra High
Brightness
ΦV
1920 lm
IV
637 cd
ΦE
5920 mW
IE
1970 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
7.9 mm
w
3.75 mm
h
0.43 mm

Ordering codes

Product Type Description Order No. Availability
KW HLL531.TE-G0G8-ebvFfcbB46-RS5R ΦV = 1640 ... 2190 lm (IF = 1000 mA) Q65112A8357
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
