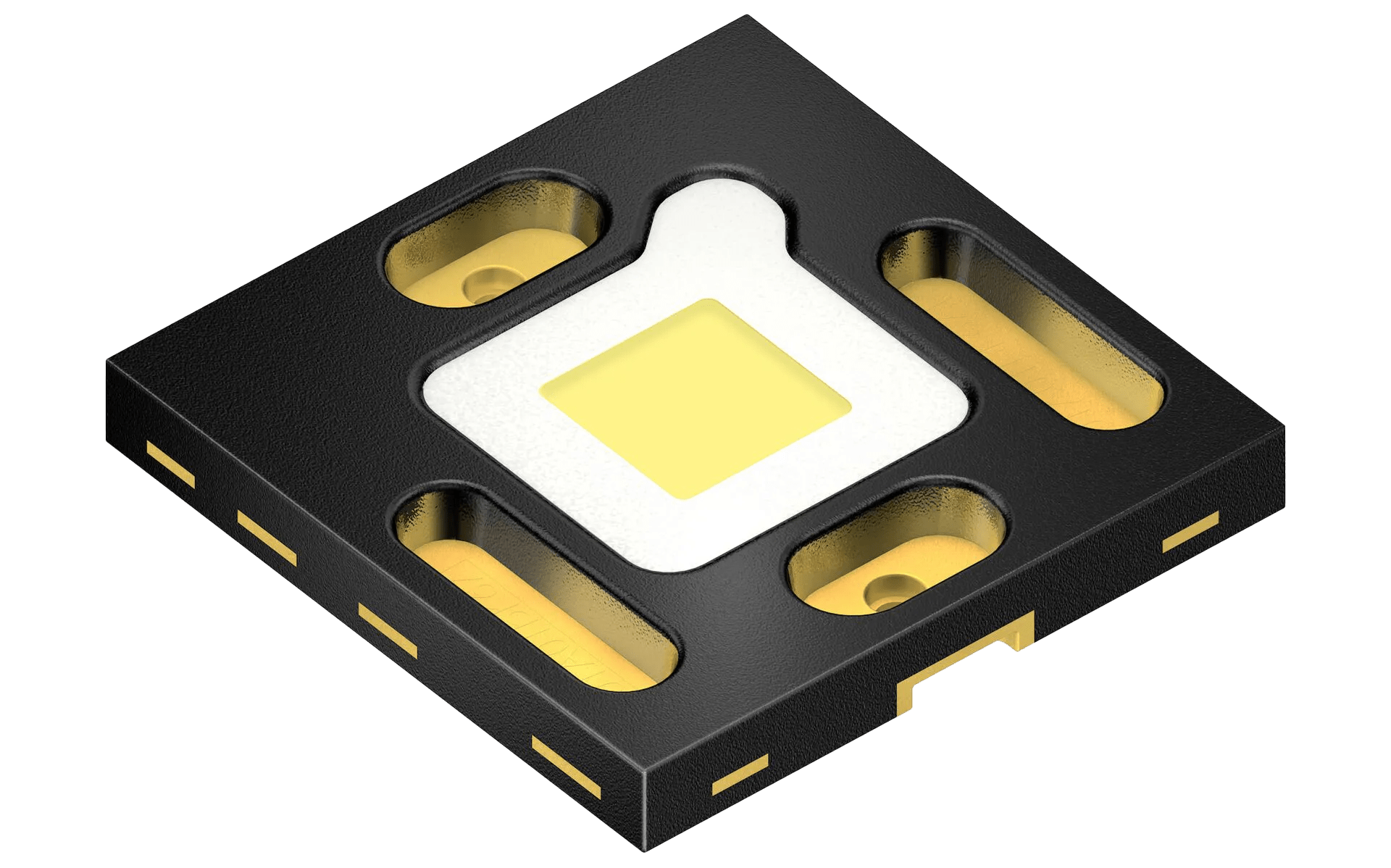

OSRAM OSLON® Black Flat S, KW HHL532.TK

Description

The OSLON Black Flat S product family meets both, excellent brightness in combination with outstanding luminance. The SMT device is very stable, durable and can be used with standard SMT processes. A new solder pad layout allows for high reliability and supperior thermal management. The compact chips deliver high light output. The Device is Pin-compatible with LUW HWQP.

Datasheet

Select & order

Details

Parameters

Color of emission

White

Electrical power

3.2 W

High

Brightness

Φ_V

395 lm

I_V

128 cd

Φ_E

1260 mW

I_E

408 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

135 °C

Dimension

3.75 mm

0.49 mm

Application fields

Automotive & mobility Static forward lighting

Ordering codes

Product Type	Description	Order No.	Availability
KW HHL532.TK-S2S8-4L07M0-2686	Φ_V = 355 ... 510 lm (I_F = 1000 mA)	Q65112A8068	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now You will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now RS Buy now
KW HHL532.TK-S2S9-4L07M0-2686	Φ_V = 355 ... 535 lm (I_F = 1000 mA)	Q65112A9389	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
