Details
Features
- XYZ true color channels + IR channel + 2 Hg channels
- Ultra-high ALS and color sensitivity
- Flicker detection up to 7kHz (14kS raw data)
- Integrated diffuser in package
- 0.18µ process technology with 1.8V/1.2V I²C and I³C
- Factory calibrated with multiple light-sources

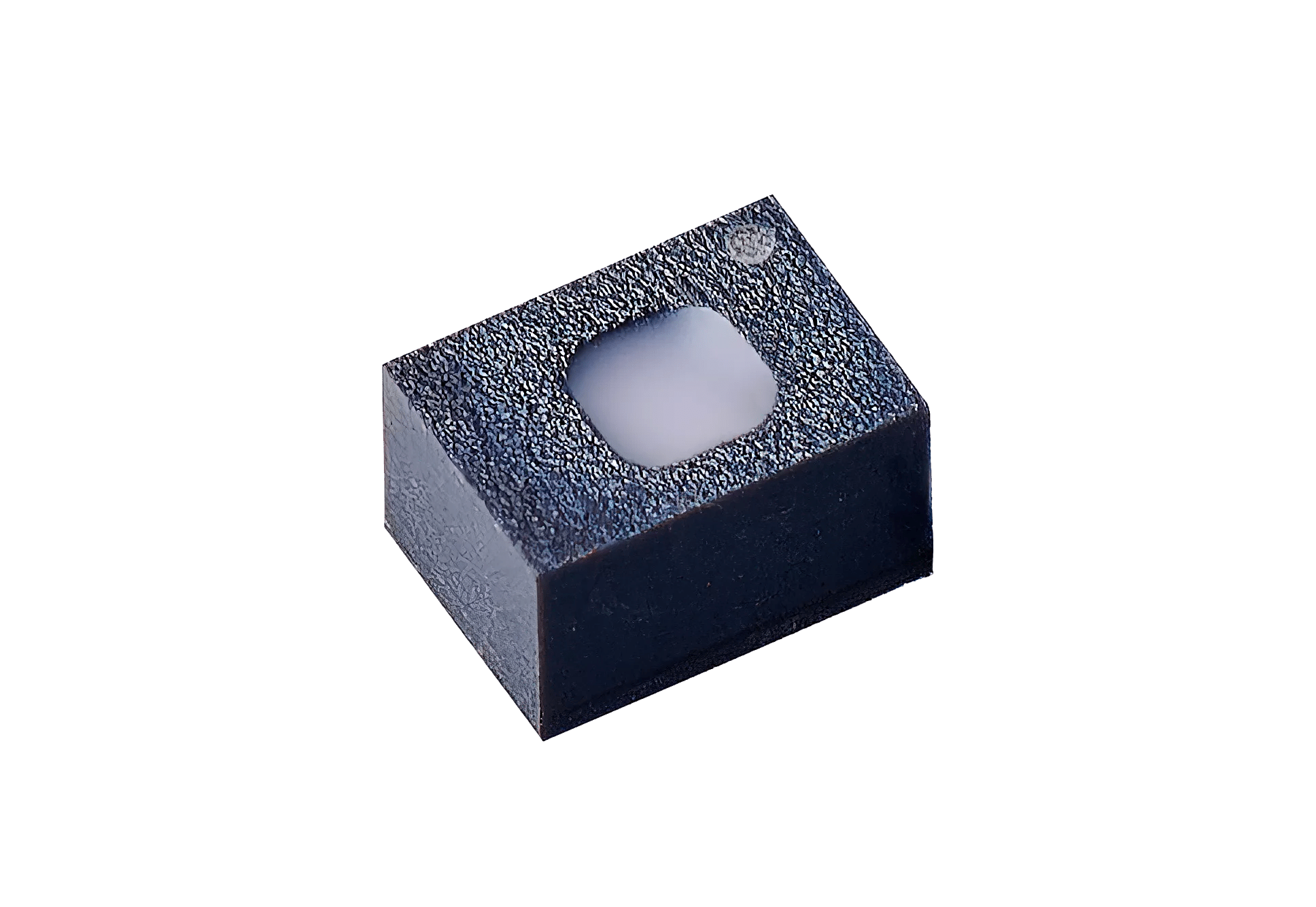

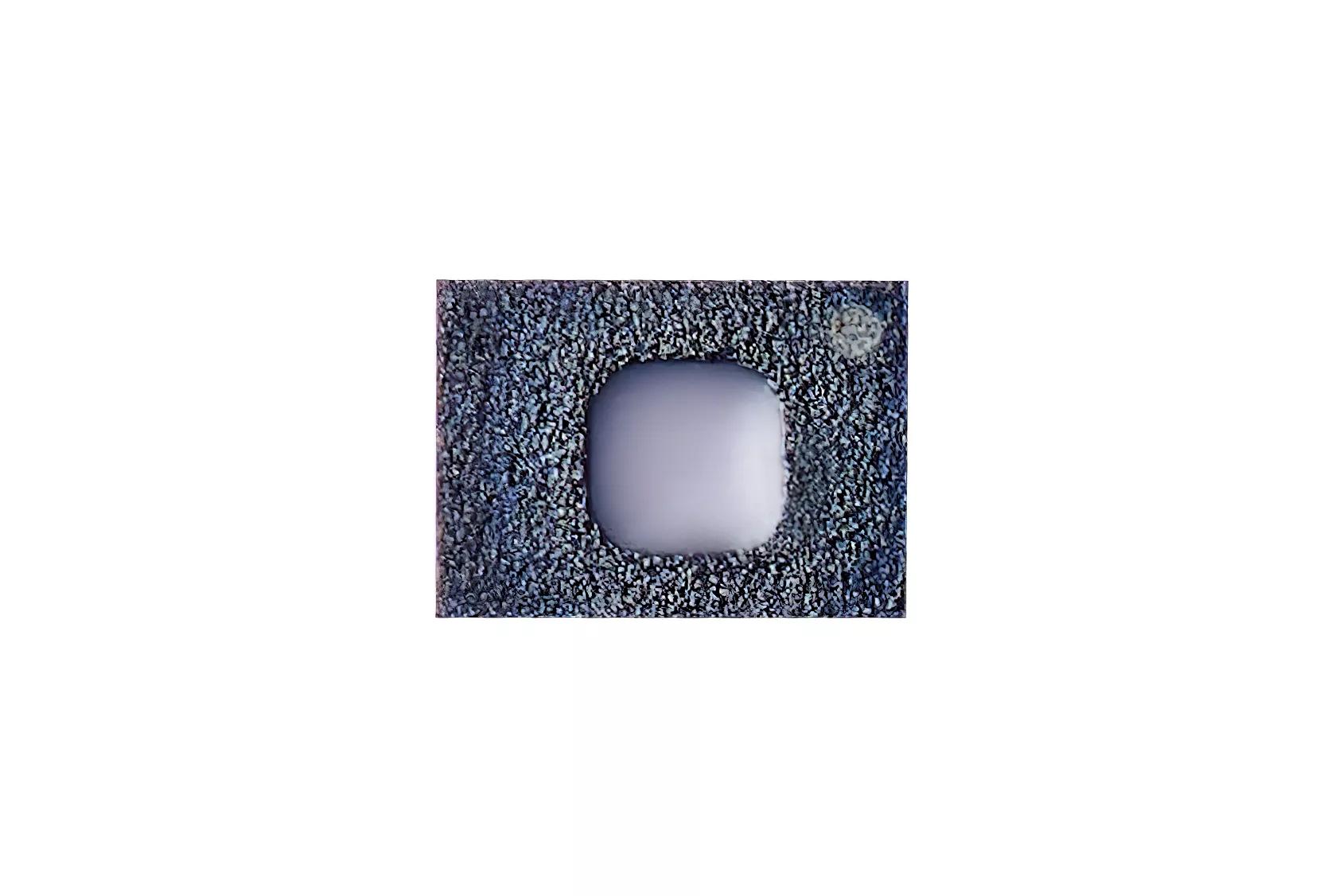

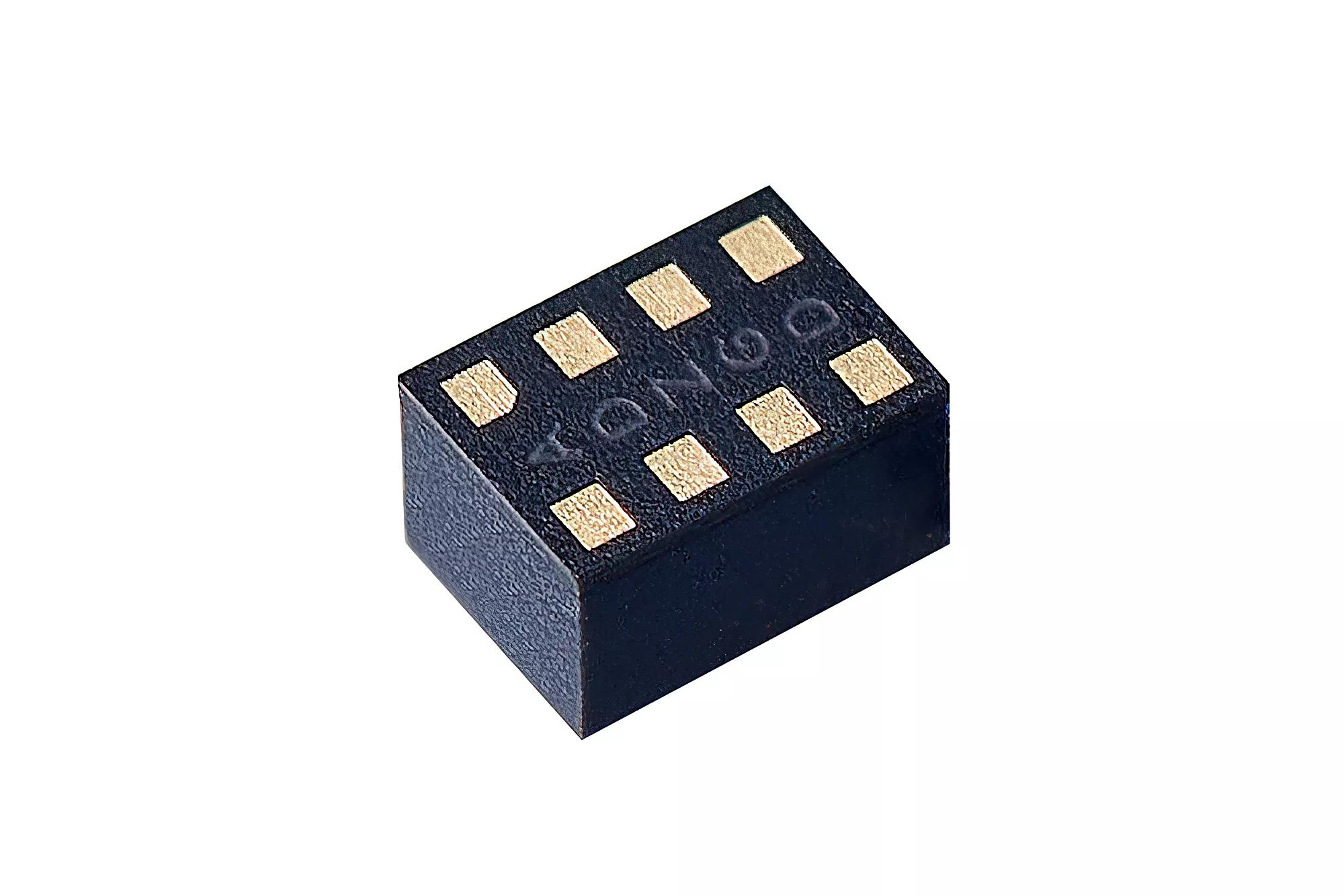

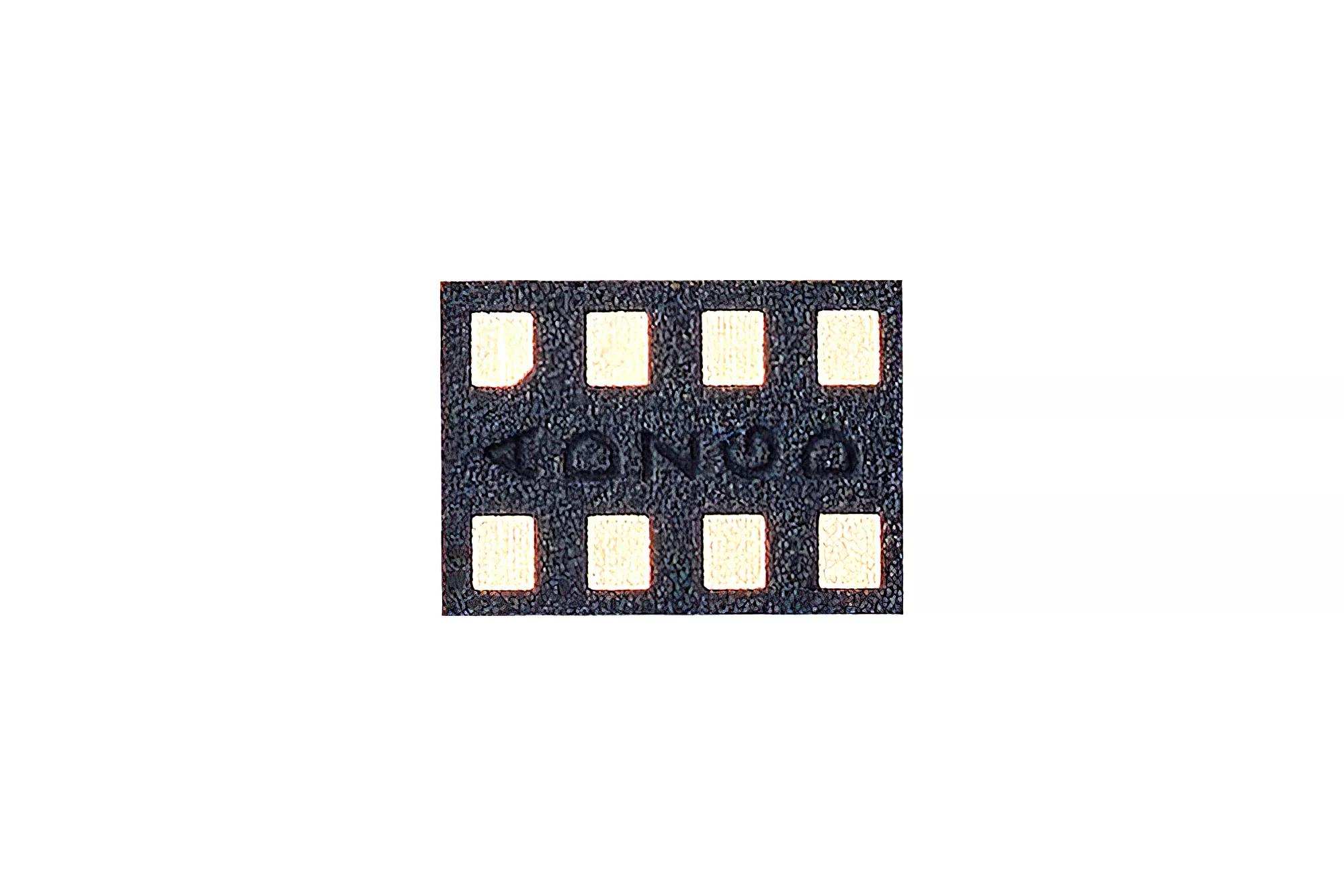

- Area efficient 2.5 x 1.8 x 1.5 mm OLGA package (8-pin)
Benefits
- Provides high-accuracy color sensor mimicking the human eye
- Allows calculation of chromaticity coordinates and light source detection
- Simplifies design – no diffuser or accurate aperture needed
- Simplifies smartphone production flow – simple end of line calibration
- Enables accurate and stable measurement in low light conditions
- Compensates for part-to-part filter variation
- Reduce board space requirements and enable low-profile system design
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| TCS35303-2 | OLGA T&R (5000pcs per reel) | Q65114A2934 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| TCS35303-2M | OLGA T&R (500pcs per reel) | Q65114A1311 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Datasheets
Images
Images
Images

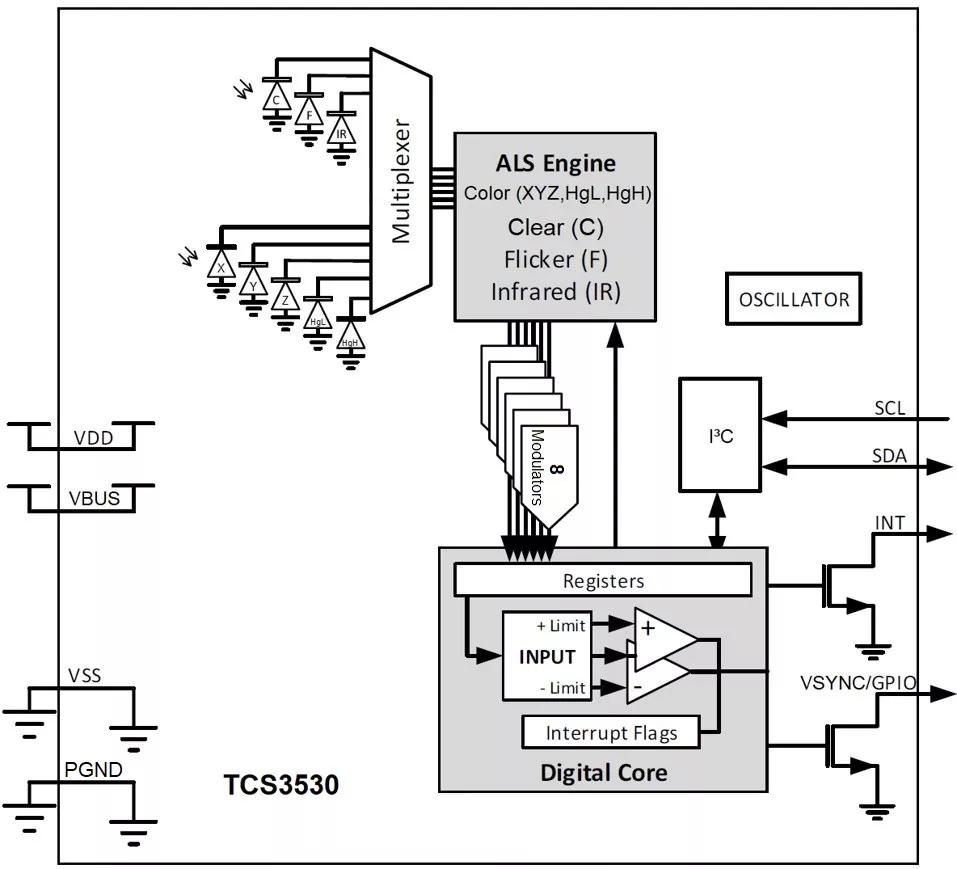

Block diagram
